Motion Controllers

  • Authorised motion business partner of logo

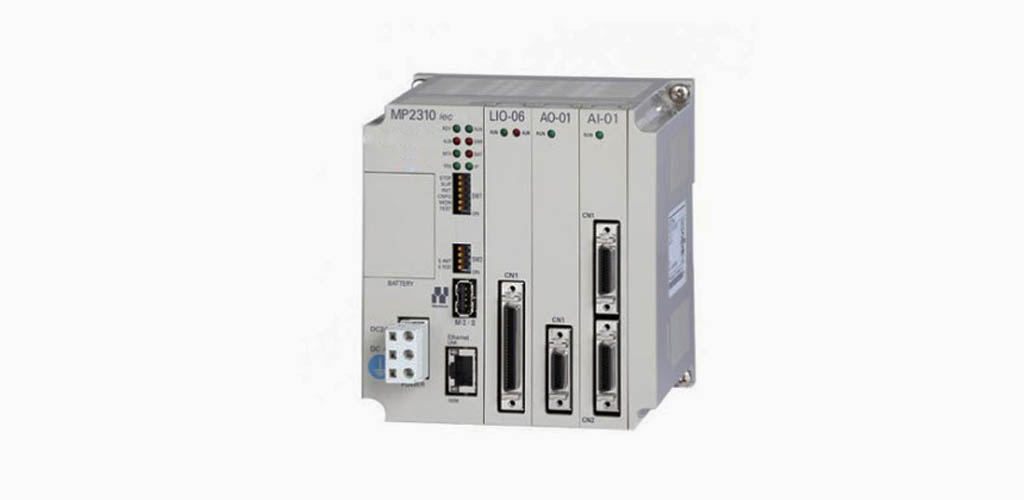

Motion Controllers MP2000 Series

ALL-IN-ONE CONSTRUCTION TYPE - upto 48 axis
The new MP2300 Machine Controller with compact cubic body offers best solutions to customers requirements:
  • Control to optimize your machines performance
  • Adaptability to your individual system
  • Operability for programming and maintenance

Custom-made Machine Controllers

  • The MP2300 is an all-in-one machine controller. It has three slots for other modules and a basic module whose standard functions include those of a CPU module, an SVB module, and an I/O module. The CPU can be used to control 48 axes (when two SVB-01 modules are mounted).

For Global Open Networks

  • Simply insert the optional modules in the slots to construct a global open network and expand I/O.Access to all controllers in the MP series from the Engineering PC connected to Ethernet and running MPE720.

Synchronous Sequence and Motion Processing

  • Achieves faster CPU processing and synchronized sequencing of motion control.
  • The MP2300 Machine Controller controls the machines motions in synchronization with high-speed scanning, which helps to reduce tact time. The motion control starts within 1 scan from the start signal. Also, the MP2300 can control different motions at the same time.
  • Maximizing the speed for arithmetic calculations is essential for high-speed motion control. The high-speed CPU processing of the MP2300 is capable of coping with large capacity programs. Command Execution Time is 0.2ms/1,000 steps (1.4 times faster than MP930) The Program capacity of ladder program has 4k steps when the motion program has 1200k characters. (120k steps max. only with ladder program)

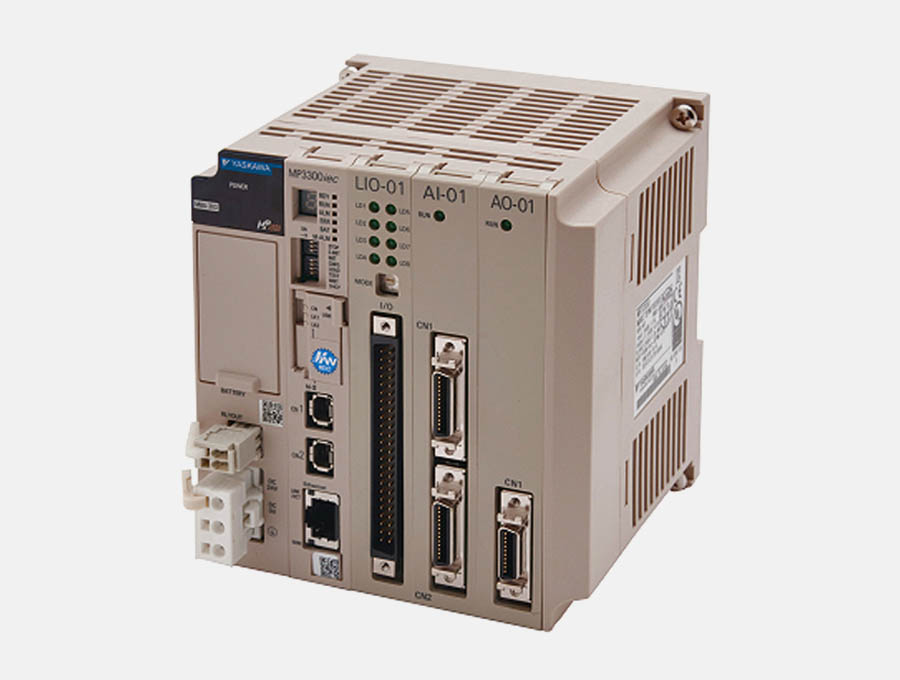

MP3000 (Up to 256 Axes)

  • The MP3000 is Yaskawa's flagship controller providing a faster processor, a faster motion network and a large configurable rack system.
  • System Integrated Engineering Tool
  • The optimum development platform that has now been made available for the first time ever.
  • Execution of all the settings and monitoring of whole systems.Multiple axes can be adjusted simultaneously using multiple windows.
  • Ladder program that offers the ultimate in ease for viewing and operating Motion program that creates a new programming style.

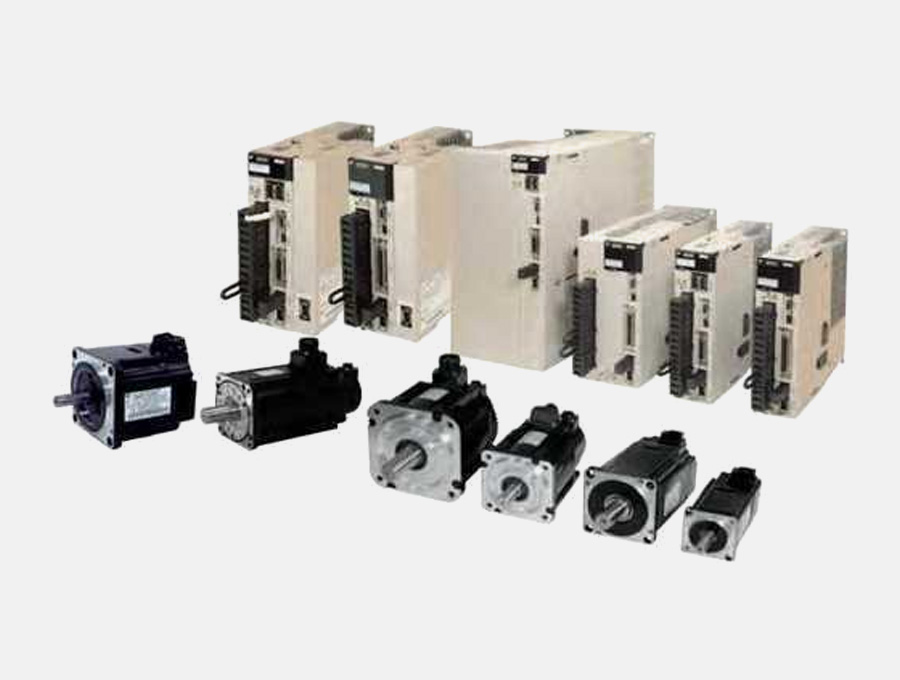

Sigma 7 (Servo Pack)

  • Industry-leading 3.1 kHz bandwidth significantly improves settling time.
  • “Green” regen power capability reduces total energy consumed
  • Tuning-less capability reliability tunes servo system with no user adjustment needed
  • Powerful package of tuning functions include compensation for machine inertia, vibration, ripples, friction.
  • Maintains tuning accuracy despite inertia changes up to 30:1
  • IEC 61508 SIL3 safety certification

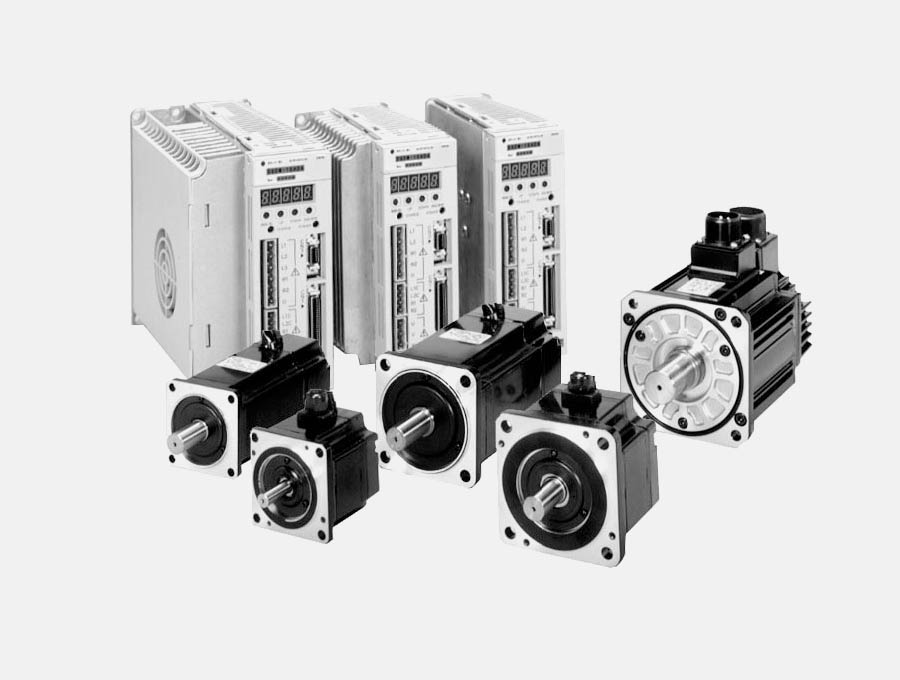

Sigma 7 (Servo Motor)

  • 24-bit high-resolution encoder installed High efficiency, low heat generation
  • Downsizing by up to 20 %r
  • Flange compatible with Sigma-5
  • Type : Rotary Servomotor
  • Range : 50 W – 7 kW
  • Serial Encoder : 24-bit absolute

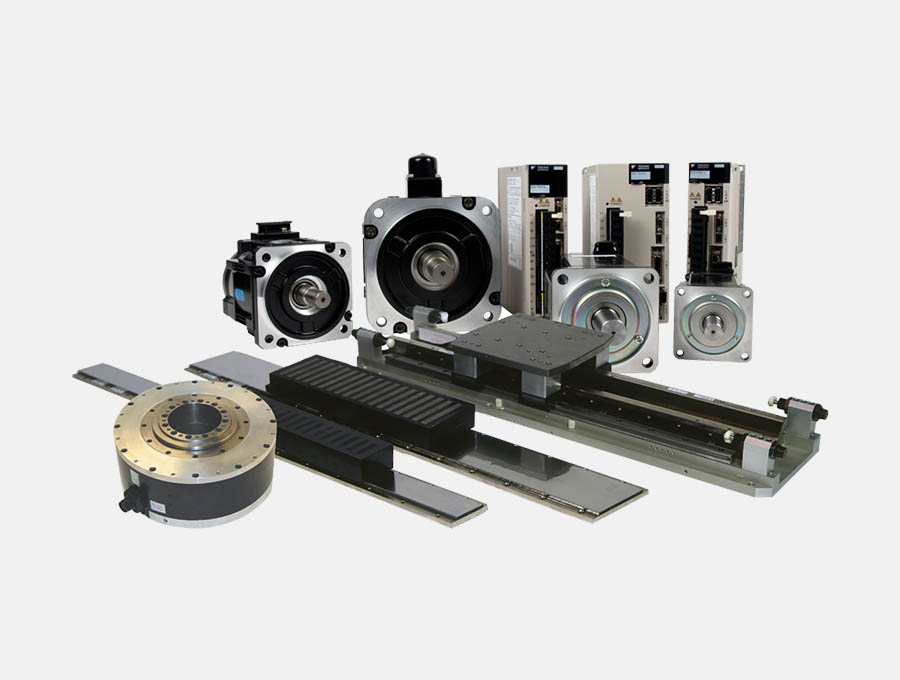

Sigma 5 (Servo Drive)

  • Sigma-5 series offers rotary servo motor, direct drive motor and linear motor.
  • They cover all market demands with regard to high efficiency, low maintenance and cost effective solution.
  • Embedded open network, MECHATROLINK, drive, delivers best performace to the machine.
  • Height response characterstic up to 1.6 kHz
  • Easy to use with latest technology

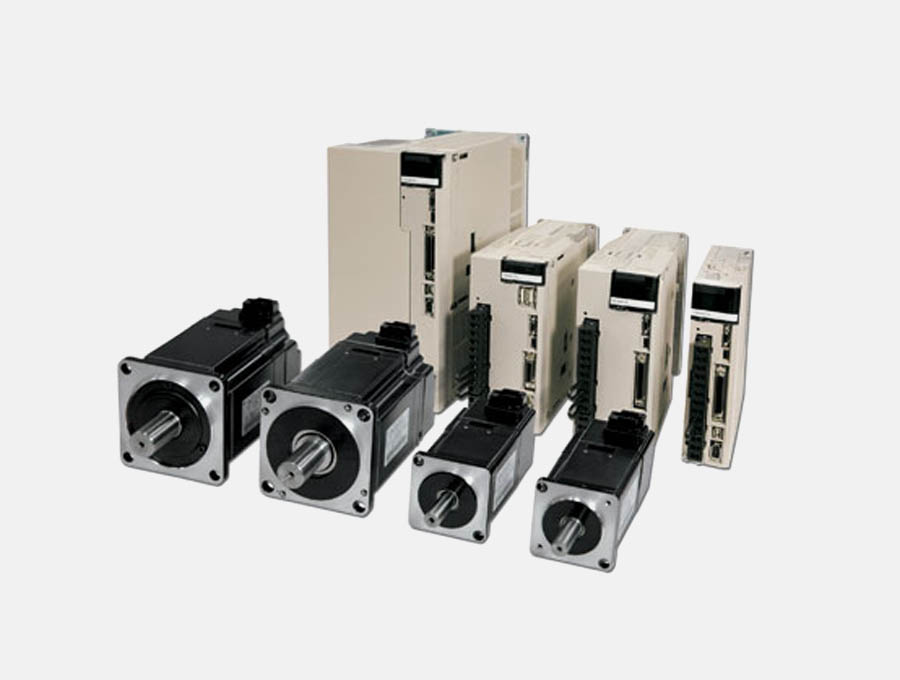

Sigma 5 (Servo Motor / Linear Motor / Direct drive motor)

  • Peak Torque: 350% of rated torque
  • High resolution encoder:20bit
  • Voltage : 200 V
  • Rated Output : 50W to 750W
  • Rated Speed / Max Speed (rpm) : 3000 / 6000

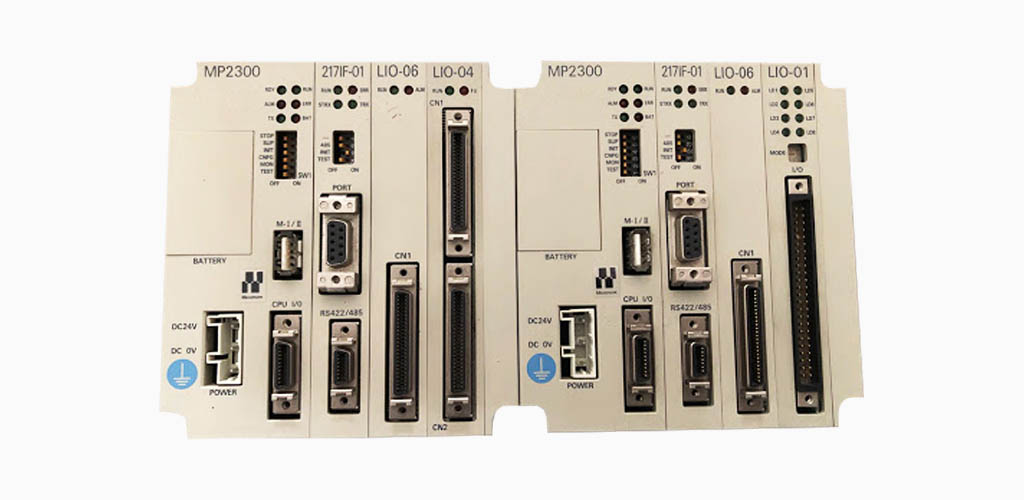

Motion Controllers MP2000 Series

Features & Functions MP2300 Basic Module
One port for the MECHATROLINK is provided as a standard feature.Flash memory where the user can be stored is a standard feature.



Name





Model



Model



MP2300



JAPMC-MP2300



24VDC ± 20%, Mechatrolink II Channel, Input: 8 points, Output: 4 points


I/O Modules for MECHATROLINK-II & MECHATROLINK-III
64-point I/O module for distributed I/Os, counter module, and pulse output module are available.
Optional Communication Modules
Used to construct an open network. Modules with various types of interfaces are available.



Name







Model



Description



No. of Modules



218IF-01





JAPMC-CM2300



Ethernet(10BASE-T)
RS-232C port ×1





8



217IF-01





JAPMC-CM2310



RS-232C
RS-422/485 port





8



260IF-01





JAPMC-CM2320



DeviceNet
RS-232C





8



261IF-01





JAPMC-CM2330



PROFIBUS
 RS-232C





8



215AIF-01 MPLINK





JAPMC-CM2360



MPLINK communication/RS-232C



8



215AIF-01 CP-215





JAPMC-CM2361



CP-215 communication/RS-232C



8
Optional Local I/O Modules
Provides digital or analog I/O interface. 5 types of digital I/O modules, 2 type of analog I/O modules, and 1 type of counter module are
available.



Name





Model



Description



LIO-01



JAPMC-IO2300



Digital input: 16 points (sink output mode)
Digital output: 16 points (sink output mode)
Pulse input: 1 point





LIO-02



JAPMC-IO2301



Digital input: 16 points (source output mode)
Digital output: 16 points (source output mode)
Pulse input: 1 point





LIO-04



JAPMC-IO2303



Digital input: 32 points Digital output: 32 points
 (sink output mode)





LIO-05



JAPMC-IO2304



Digital input: 32 points
 Digital output: 32 points
 (source output mode)





DO-01



JAPMC-DO2300



Digital output: 64 points (sink output mode)





AI-01





JAPMC-AN2300



Analog input: 8 channels



AO-01





JAPMC-AN2310-E



Analog output: 4 channels



CNTR-01





JAPMC-PL2300-E



Pulse-input counter
Motion Control Modules
Connects to the SERVOPACK for motion control. Various MECHATROLINK slaves can be connected to the SVB-01 module.



Name




Model




Description





No. of Modules



SVB-01



JAPMC-MC2310


 Mechatrolink-II





16



SVA-01





JAPMC-MC2300



Analog-output 2-axis servo control



16



PO-01


 JAPMC-PL2310-E





Pulse output 4 axis servo control



16

Easy to Use

The time of machine development can be greatly reduced by using the self-configuration function that automatically detects devices connected to MECHATROLINK and automatically sets the required parameters.
The application program converter can utilize your previous software assets with their accumulated databanks of specific knowledge to improve the system further.

High Performance

  • High control characteristics have been realized by increasing the CPU and Motion Network (MECHATROLINK-II) speed.
  • MECHATROLINK-II baud rate: 2.5 times faster
  • CPU processing speed: 1.4 times faster than MP930
  • MECHATROLINK-II enables position control, speed control, and torque control and makes precise synchronous control possible. The control mode can also be changed while online, facilitating complicated machine operations.
  • Select the appropriate Communication Module to use the following open networks.
  • Ethernet
  • DeviceNet
  • PROFIBUS
  • MPLINK
  • CP-215
  • FL-net
  • EtherNet/IP
  • EtherCAT
  • CompoNet
  • PROFINET
  • CC-Link

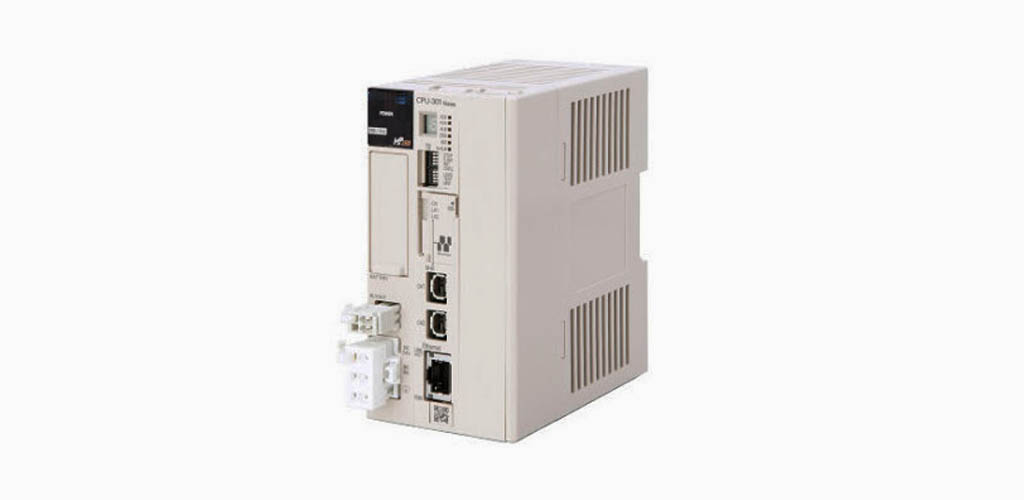

The MP3300 machine controller in the MP3000 series, which is the successor to the MP2000 series, enables the industry's fastest synchronous scanning.
By using it in combination with the Σ-7 series of AC servo drives, our customers can make the best use of systems with motion control offering a whole new range of exciting possibilities.

Enhanced control performance

  • The MP3300 delivers high-speed and high-level performances, and expands program capacity. The MP3300 is also capable of high-speed, synchronized communication with MECHATROLINK-III compatible Servo Drives and AC Drives.

Improved ease of use

  • Instead of opening an adjustment screen for each axis, adjustments of multi axes can be performed on just the one screen, dramatically reducing the setup time.

Improved maintainability

  • The CPU unit itself is equipped with a USB port for data storage purposes as a standard feature. This makes easy work of system version updating and backup, as well as the import and export of large volumes of data. Moreover, the data logging function makes it possible to save the operational statuses of a system in the internal RAM or a USB memory. The logging data can then be easily accessed from a host system in a remote location. This results in the ability to obtain large volumes of data, including system operational statuses, and significantly improves traceability on the production floor.

Complete compatibility with the MP2000 series

  • Compatibility means that customers can use the many different optional modules that have been available for use with the MP2000 series. It also means that they can directly use the program applications of the MP2000 series without making any changes. As a result, the transition from the MP2000 to the MP3300 is smooth, enabling improvements in the performance and functions of the customers' systems to easily be achieved.
