SAP integration with third Party Software - SCADA

Smart IoT Device is a versatile device which reads the MODBUS memory map of any RS-485 MODBUS protocol device and sends the data to the cloud server. The data stored can be viewed as per customer requirement on dashboard. SID is an ideal solution for online monitoring of RS-485 MODBUS data. SID mainly consist of GSM module and microcontroller-based control circuit.
SID supports generic MODBUS RTU protocol for data acquisition and uses MQTT protocol to communicate with IT application database on cloud. The Device can be easily configured within one minute to send your data on Any MQTT Server dashboard.
ERP Product as SAP
  • ERP is an Enterprise Resource Planning Software
  • SAP is one of the ERP Software developed by the German company SAP AG which is now known as SAP SE.
  • SAP incorporates Business Processes and Operations of-
  • Finance
    - Financial Accounting, Management Accounting Human Capital Management (Training, Payroll, e-Recruiting) Materials Management
    - Materials Management
    - Production Planning
    - Quality Management
    -Sales & Distribution
SAP Communication Methodologies
  • RFC ( Remote Function Call )
  • BAPI ( Business API )
  • Processing File ( Text, CSV, PSV, Excel, Character Delimited ) using ABAP Programs
  • Application Linking and Enabling using IDOC ( Intermediate Document )
  • Using Web Services with ABAP Programs and API Programs ( Python, Java, .Net, etc.)
  • Using SAP Module Process Integration / Process Orchestration Module

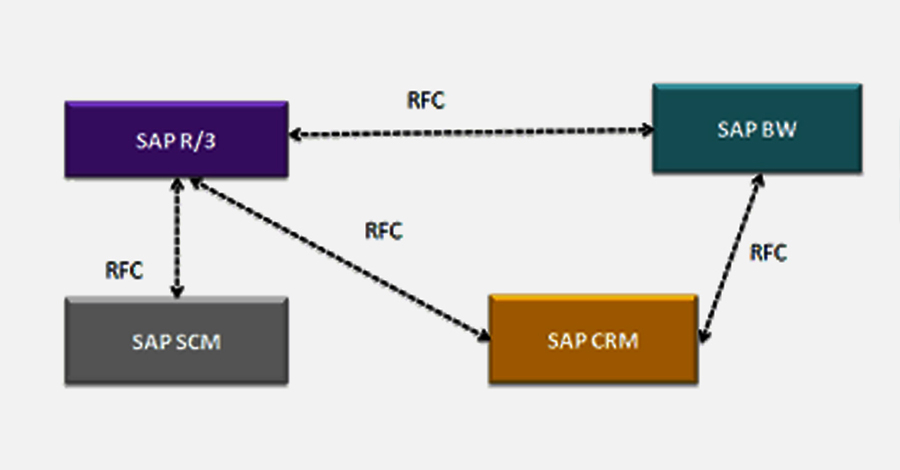

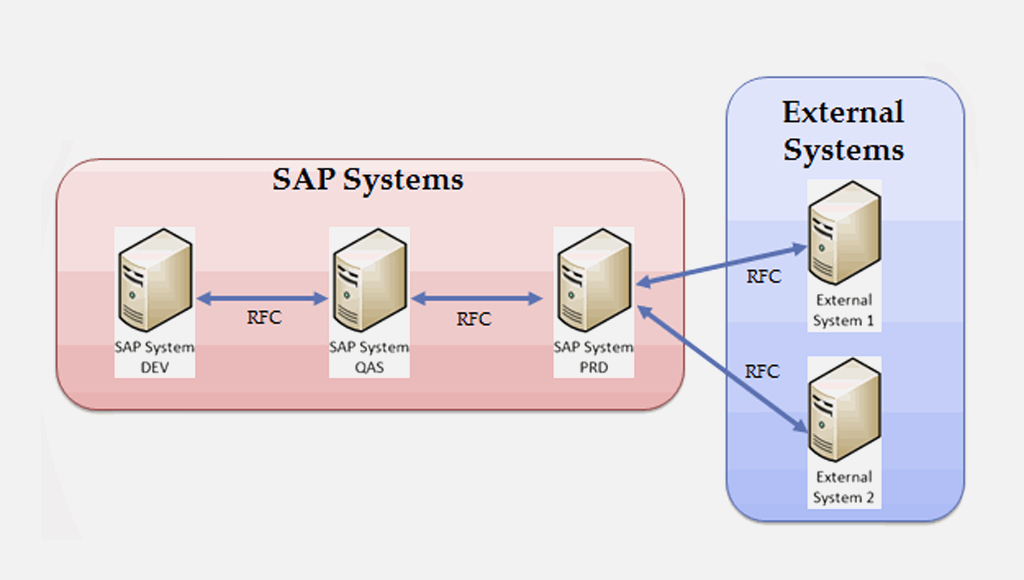

SAP Communication Methodologies RFC ( Remote Function Call )

  • RFC is a mechanism that allows business applications to communicate and exchange information (in pre-defined formats) with other systems.

  • SAP Uses CPIC (Common Programming Interface for Communication) Protocol to transfer data between Systems. It is SAP Specific protocol. Remote Function Call (RFC) is a communications interface based on CPI-C

SAP Communication Methodologies BAPI ( Business API )

  • Business Application Programming Interface(BAPI) are standardized programming interfaces (methods) enabling external applications to access business processes and data in the R/3 System
  • BAPIs provide essential functions and can be used for most SAP business object types. These BAPIs should be implemented the same for all business object types

Processing File ( Text, CSV, PSV, Excel, Character Delimited ) using ABAP Programs

  • Data File can be placed to the Server as per the Data requirement of External System and the External System will access that Data File to process furtherenabling external applications to access business processes and data in the R/3 System
  • External System will place the Data File and ABAP Program will read the Data File and data will be stored in SAP Database as per the Validations
  • EText File for Character Like Data
  • CSV File for text, Date, Time with Integer Data
  • PSV File is Currency or Unit Data
  • Special Characters can be used to separate data in Character Delimited File

SAP Communication Methodologies

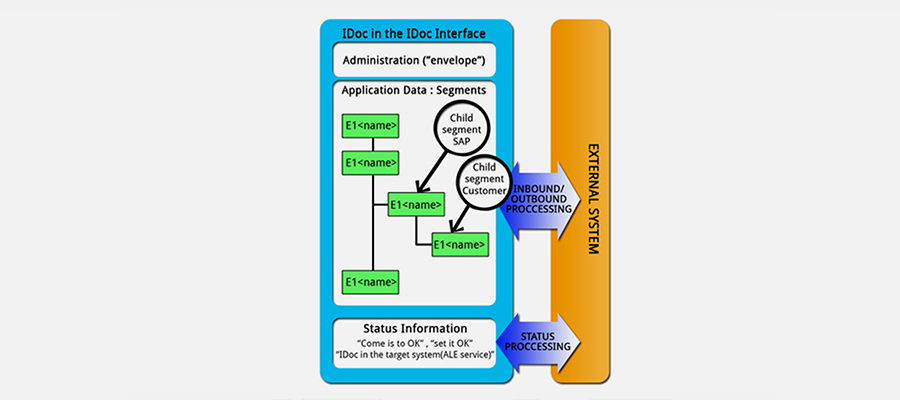

Application Linking and Enabling using IDOC ( Intermediate Document )
  • IDoc (intermediate document) is a standard data structure used in SAP applications to transfer data to and from SAP system applications and external systems.
  • The transfer from SAP to non-SAP system is done via EDI (Electronic Data Interchange) subsystems whereas for transfer between two SAP systems, ALE is used
  • Waterfall analysis ,Machine downtime etc

SAP Communication Methodologies

Using Web Services with ABAP Programs and API Programs ( Python, Java, .Net, etc.)
  • ABAP Function Modules can be exposed as Web Service either directly or via Proxy Technologies.
  • When using Proxy Technology to expose Web Services, services are defined and exposed in the ABAP stack
  • A Web Service Consumer Application can then load the WSDL and invoke the ABAP Web Service.

Sap Communication with Third Party Software - SCADA

  • Using SAP Module Process Integration / ProcessOrchest on Module
    -SAP PI/PO (Process Integration / Process Orchestration) is a tool that allows you to integrate solutions. It makes it easy to synchronize data between different systems
    -SAP PI provides a middleware platform that doesn't deal with how application components are implemented with a business logic and focuses more on data exchange between the different components. You can consider SAP PI as a central instance or middleware that interconnects different systems.

Sap Communication Methodologies with Third Party Software - SCADA

  • SCADA Stands for Supervisory Control And Data Acquisition
  • It is a control system architecture having computers, networked data communications and graphical user interfaces (GUI) for process supervisory management
  • Also it is consist other peripheral devices like Programmable Logic Controllers (PLC) and Proportional Integral Derivative (PID) controllers to interface with process plant or machinery.
